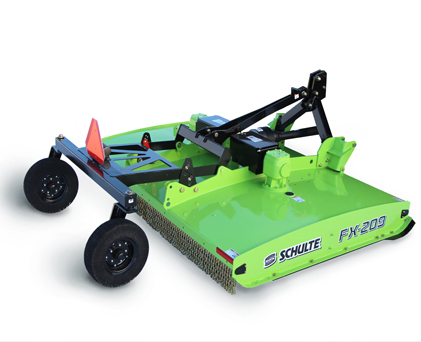

FX-209 Rotary Cutter
# FX-209
Weight
Product Details
Part Number
FX-209
Category
Division
Schulte Whole Goods
Select
PRODUCT CATEGORY
Rotary Cutters
Specs
| Overall Width | 116.5" ( 2.96 m) Skids Inboard 120.5" (3.06 m) Skids Outboard |
| Overall Length | 162.5" (4.1 m) Trailing Unit, 127" (3.3 m), 3 Point / Semi Mount Swing / Semi Mount |
| Transport Clearance | 11.5" (29.2 cm) |
| Cutting Height | 2" - 13" (5.1 cm - 33 cm) |
| Cutting Width | 109.25" (2.78 m) |
| Cutting Capacity | 3" (7.6 cm) |
| Approximate Weight | 2400 lbs (1088 kg) Trailing, 2300 lbs (1043 kg) 3 Point, 2100 lbs (952 kg) Semi Mount 2860 lbs (1297 kg) Semi Mount Swing |
| Hitch Type | Cat. II & III 3 Point / Semi Mount Swing (13” left or right swing), Semi Mount / Trailing Pull |
| Deck Thickness | 7 GA (3/16", 4.6 mm) |
| Side Skirt | 1/4" x 13.75" ( 6.35 mm x 337 mm) |
| Gear Box Rating | Outboard 210 HP (157 kW) |
| Blade Tip Speed | 540 RPM - 17086 FPM 1000 RPM - 17355 FPM |
| Blade Overlap | 4.75" ( 121 mm) |
| Tractor PTO Speed | 540 or 1000 RPM |
| Minimum Tractor HP | 50 HP ( 37.3 kW) |
| Deflectors | Double Chain Front and Rear |
